Vodafone Arena, Istanbul ... Pluvia was chosen to drain the glassfibre membrane roof of this stadium.

In the demanding realm of stadium construction and operations, where performance, sustainability, and design flexibility are crucial, Geberit is raising the bar with a holistic approach to water management. From roof drainage to bathroom solutions, the company’s integrated systems are designed to meet the rigorous demands of these large-scale venues, according to the Swiss sanitary solutions provider.

Stadiums require robust, reliable, and sustainable infrastructure to handle massive crowds and the unpredictable forces of nature. With over 150 years of experience, Geberit has established itself as a global leader in sanitary technology, offering solutions that can meet these demanding challenges head-on, says Louise Pitt, Head of Marketing and Communication (Gulf Office) for Geberit International Sales.

At the heart of stadium infrastructure is the need for robust, space-efficient, and cost-effective solutions. Geberit addresses this through an integrated system covering:

• Roof drainage (Geberit Pluvia);

• Bathroom water use (WCs, urinals, taps and showers);

• Building drainage systems; and

• Water supply lines.



Geberit Pluvia

Already proving itself in stadiums across the globe, the Geberit Pluvia siphonic system is an engineering marvel, designed to handle immense rainwater volumes with efficiency. It drastically reduces the number of roof outlets and the size of discharge stacks, freeing up valuable space and cutting down on material.

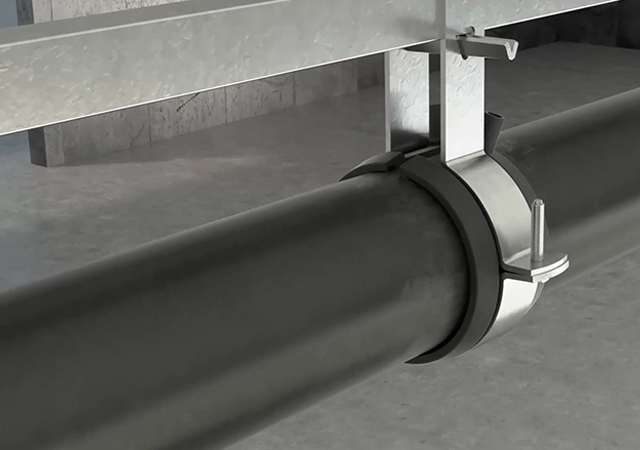

Geberit Pluvia system facilitates faster, more cost-effective installation of drainage pipes.

Geberit Pluvia system facilitates faster, more cost-effective installation of drainage pipes.

Its compact dimensions save on material costs and reduce excavation. This innovative design also eliminates the need for sloping pipes, translating directly into a faster, more cost-effective installation. The system’s flexibility allows it to be routed around virtually any architectural element or complex roof geometry, while smart function discs ensure optimal performance by preventing air intake. All of this is supported by the Geberit software suite, which provides precise hydraulic calculations from the start.

The company provides complete support for every stage of a project using the Pluvia system. This includes the planning phase, with services like system consulting, building information modelling (BIM) content, and hydraulic calculations. During the tender phase, Geberit offers assistance with quotations and generating bills of materials. In the execution stage, the company supports installers with training, on-site commissioning, logistics, and after-sales service.

“This integrated approach ensures that each project is efficient, compliant, and cost-effective – no matter the scale or location. With over 100,000 projects, 2.5 million outlets installed, and over 180 million sq m of roof area drained worldwide, Geberit Pluvia is a proven solution for modern stadium engineering,” Pitt remarks.



Bathroom solutions

Alongside the siphonic roof drainage, Geberit offers a full system with bathroom solutions that are built for performance. The company’s offering for stadium washrooms matches the resilience of its drainage systems, with durable, hygienic, and efficient products, which include:

• WC solutions, comprising the Geberit Duofix installation system for wall-hung WCs, Geberit iCon Rimfree wall-hung WC and Geberit Sigma10 (vandal-resistant sensor actuator with manual override);

• Shower toilets, such as the Geberit Aqua Clean. Renowned for its durability that makes it ideal for public and semi-public stadiums bathrooms, the range is offered in a choice of models, from entry level to VVIP bathrooms;

• Urinal solutions, comprising the Geberit Duofix element for installation of urinals, Geberit Preda urinal and urinal partitions;

• Washbasin solutions, including the Geberit Duofix element for installation of washbasins, Geberit iCon washbasin and Geberit Piave deck-mounted sensor faucets;

• Shower solutions such as CleanLine floor-even drainage channels, wall drains and anti-slip floor-level shower surfaces systems designed for easy cleaning, vandal resistance, and water efficiency;

• Geberit tap system for ablution with Duofix frame, a sleek and durable solution for public washrooms, combining easy installation with clever concealed technology. Its robust, vandal-proof design ensures long-lasting stability, hygiene, and reliability in high-traffic spaces.



Sustainability built-in

Geberit is committed to sustainable design. The company holds the EcoVadis Gold Certificate, and its solutions comply with LEED, BREEAM, and DGNB certification standards. It also provides Environmental Product Declarations (EPDs) for a wide array of products, ensuring transparency and environmental responsibility in every project.



Project references

Geberit’s solutions have been installed in numerous stadiums worldwide, demonstrating their durability and reliability in large-scale venues.

In Qatar, several stadiums have been fitted with the Geberit Pluvia system. The Al Rayyan Stadium, completed in 2018, features a 32,000-sq-m roof drained by 124 Pluvia outlets. The Al Wakrah Stadium, finished in 2019, has a 30,000-sq-m roof with 92 Pluvia outlets. Also completed in 2019, the Al Bayt Stadium is a much larger project, with 360 Pluvia outlets draining an 80,000-sq-m roof area. In all these projects, the outlets have a capacity of 12 litres per second (l/s) + 25 l/s. The Al Thumama Stadium also features Geberit’s technology.

Geberit Pluvia has also been installed in a number of other notable international stadiums, including:

• Allianz Arena, Munich, Germany: The system was used on the distinctive roof vault of this iconic stadium, utilising bendable connection pipes for its unique design.

• Vodafone Arena, Istanbul, Turkey: Pluvia was chosen to drain the flat, silicone-coated glassfibre membrane roof of this modern 42,000-spectator stadium, which successfully integrated parts of the original historic structure.

• National Stadium Warsaw, Poland: The system ensures safe drainage for the stadium’s complex roof, which includes a steel wire net and a mobile textile membrane.

Geberit’s systems are also installed in the Baku Olympic Stadium in Azerbaijan, the Estadio Akron in Mexico, and the Emirates Stadium in London.
